This is a non refundable deposit for a pre order. Your order secures your frame in the queue. Production is scheduled to start Dec.1 2026 for a Spring 2027 ship date.

The RatKing Chull is a compact steel cycle truck.

I've been thinking about building a cycle truck for over a decade but never quite found the reason to make it happen. Now that I'm a father and looking for more ways to bring Frank along with me, the timing finally feels right. Gas prices being what they are certainly helped, too.

This bike was originally designed for apartment living in town with its small footprint and grocery hauling capabilities. Now its been adapted for strolls into town, past my neighbor's cows, for post office deliveries.

The 20" front wheel creates room for a low, frame-mounted cargo platform while a full-size 26" or 29" rear wheel keeps the bike rolling easy. The rear wheel size is either or; choose the 26" for a shorter wheelbase or the 29" for even better rollover. Or just go off vibes, the reverse penny farthing is a look.

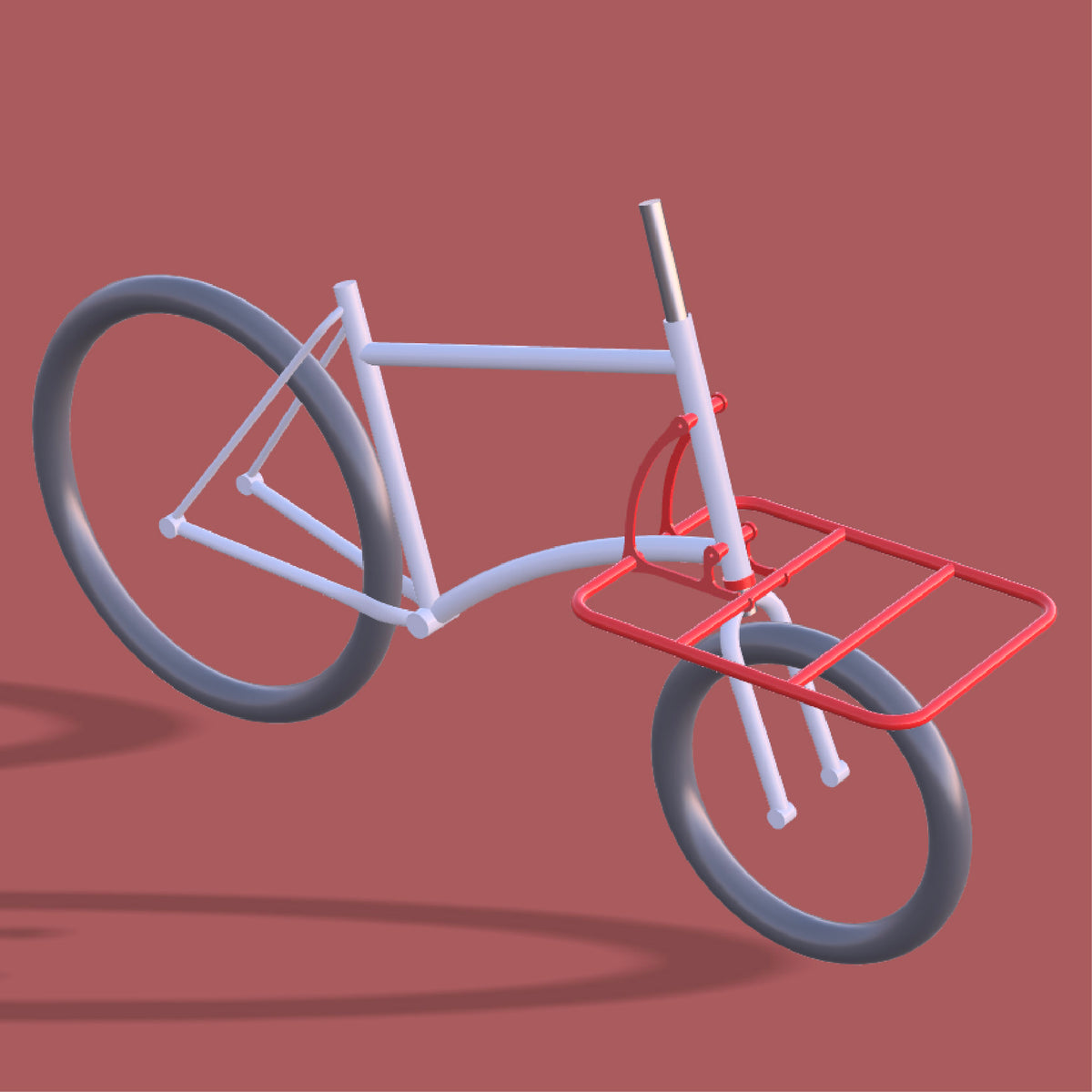

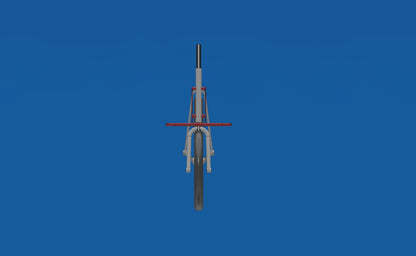

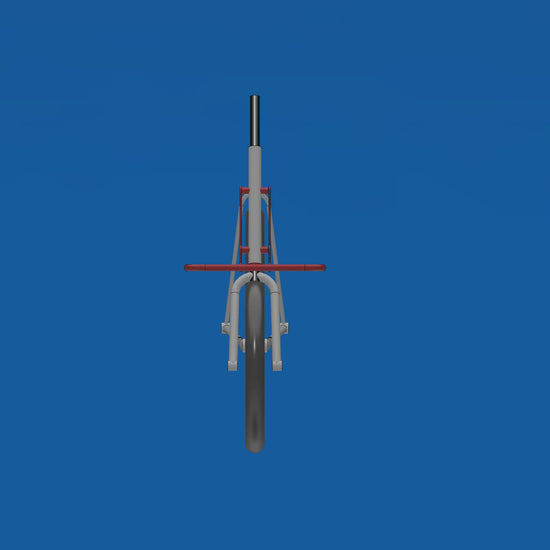

The Chull uses a removable 20 × 16" frame-mounted platform. The primary 14 × 16" cargo area extends forward of the head tube, while another 6" wraps rearward around it. By building the frame and platform separately, the platform is able to sit below the head tube, keeping cargo exceptionally low and stable.

The geometry is designed specifically around a loaded front platform, with a short overall wheelbase and steering intended to remain controlled and intuitive under load. (Geometry optimized for 2.25" Tires)

The Chull is built for moderate loads (target load capacity of 75lbs). You could carry so many burritos on this thing.

The Chull's cargo platform is not designed or intended to carry passengers, including children. The target load capacity applies to cargo only.

Price

Frameset: $3200

Frame, Fork, Platform, and Kickstand

Complete: $5800

OUTLINED BELOW

Built up by Kevin McClelland at Sound Break bike shop in Seattle, we worked together to create a utility driven build kit with just enough panache.

If you like what you see but want to swap a few parts around, we can sort out the details once you've put down a deposit. If you've got something completely different in mind, grab a frameset and consider Sound Break to put together a package of your own!

Frameset Specs

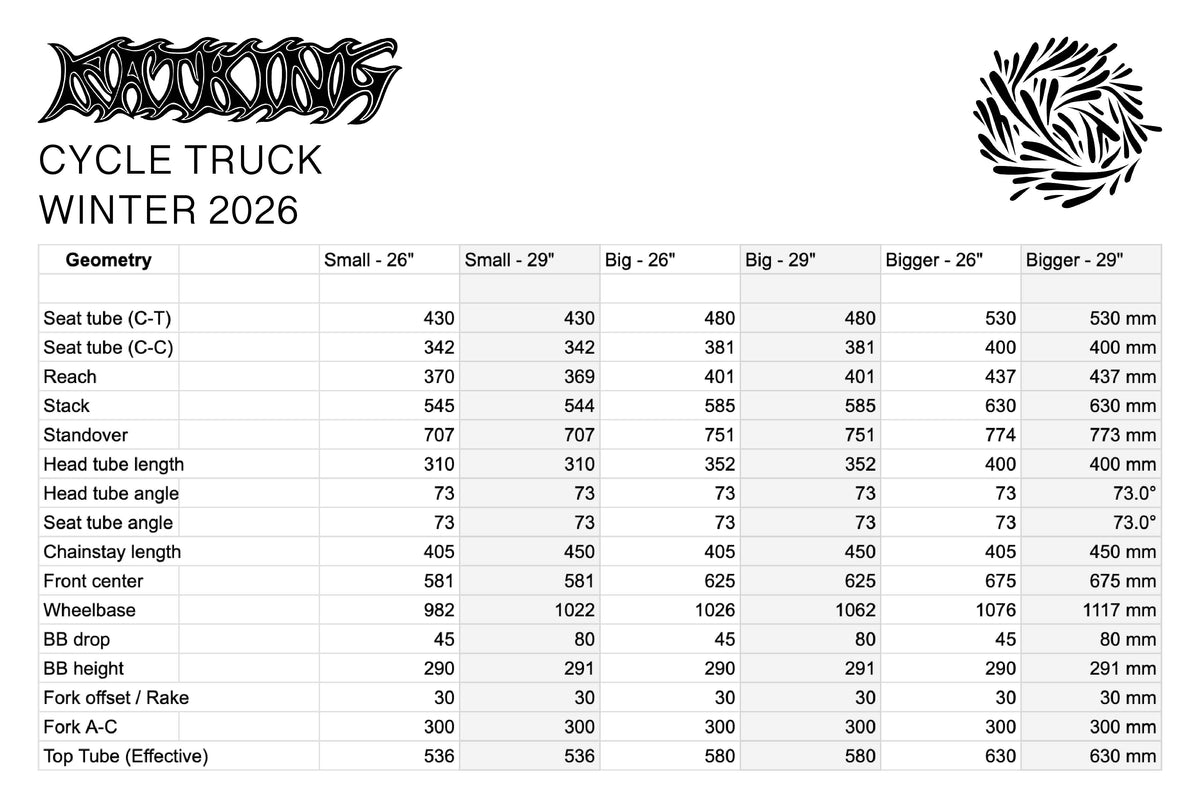

See photos for geometry chart

WHEELS & CLEARANCE

20" front wheel

26" or 29" rear wheel

Clearance for up to 2.4" Tires

FRAME & DRIVETRAIN

73 mm BSA bottom bracket

52 mm chainline

38T maximum chainring

30.9 mm seatpost

Internal ST dropper-post routing

Two bottle positions on seat tube / down tube

AXLES & BRAKES

148 × 12 mm rear thru axle

100 × 12 mm front thru axle

IS disc brake mounts front and rear

CARGO PLATFORM

20 × 16" removable frame-mounted cargo platform (14"x16" in front of Headtube / 6" extension behind headtube)

Estimated frameset+platform weight: approximately 14 lb

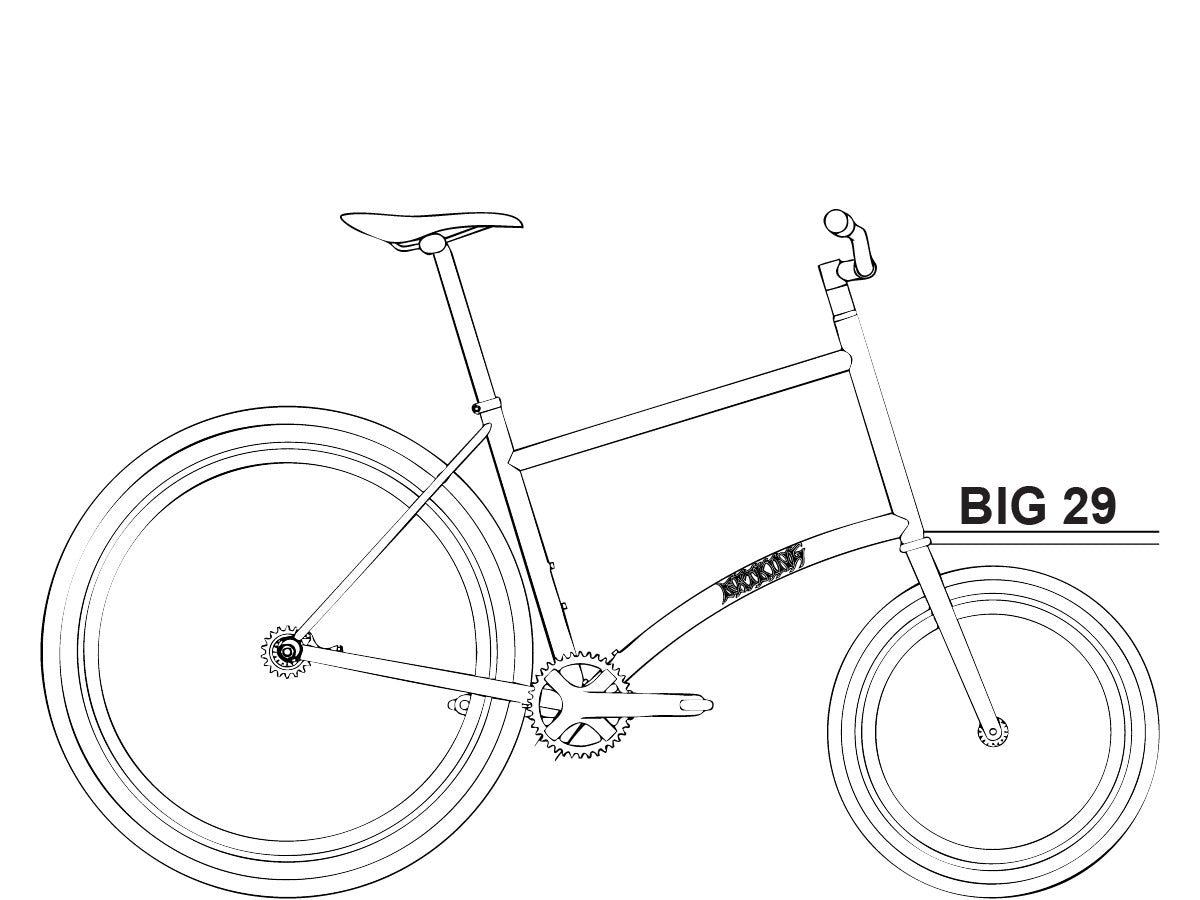

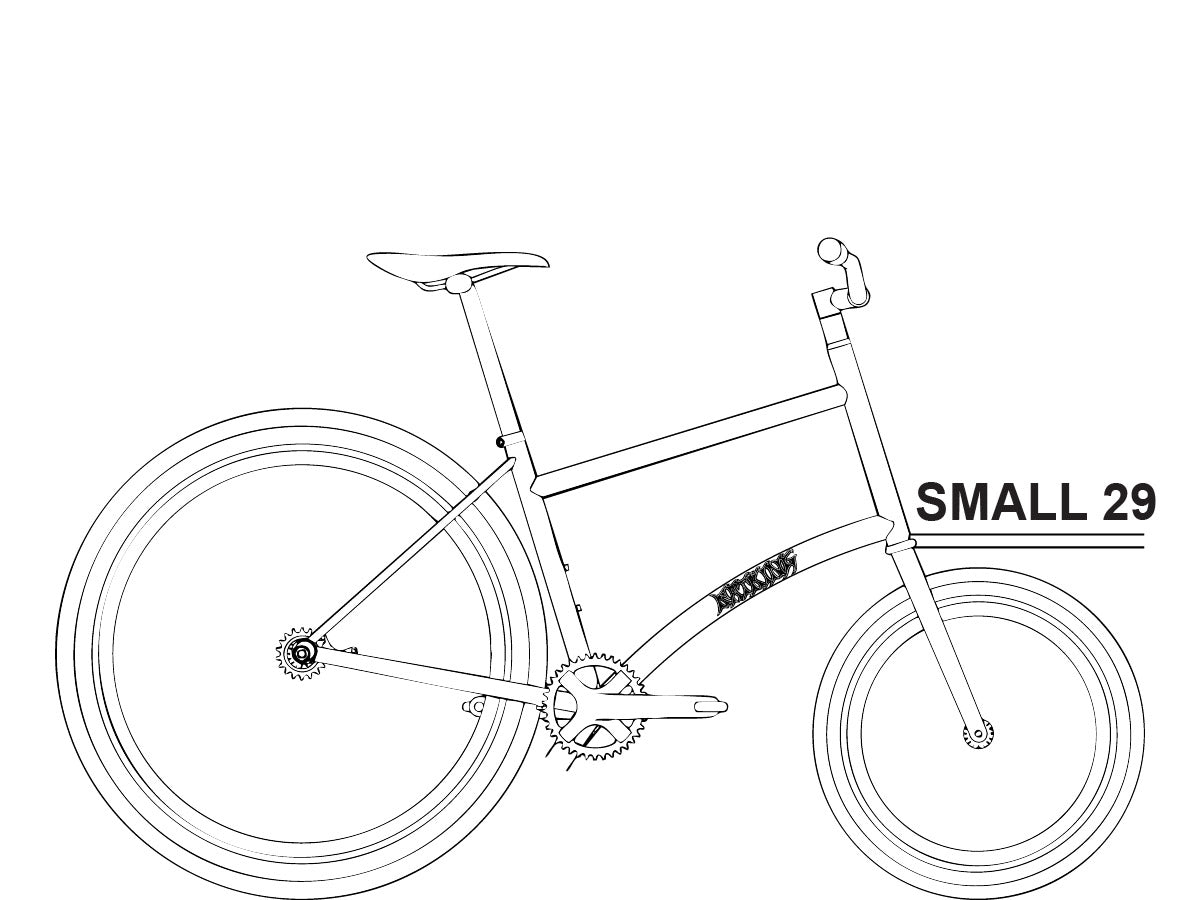

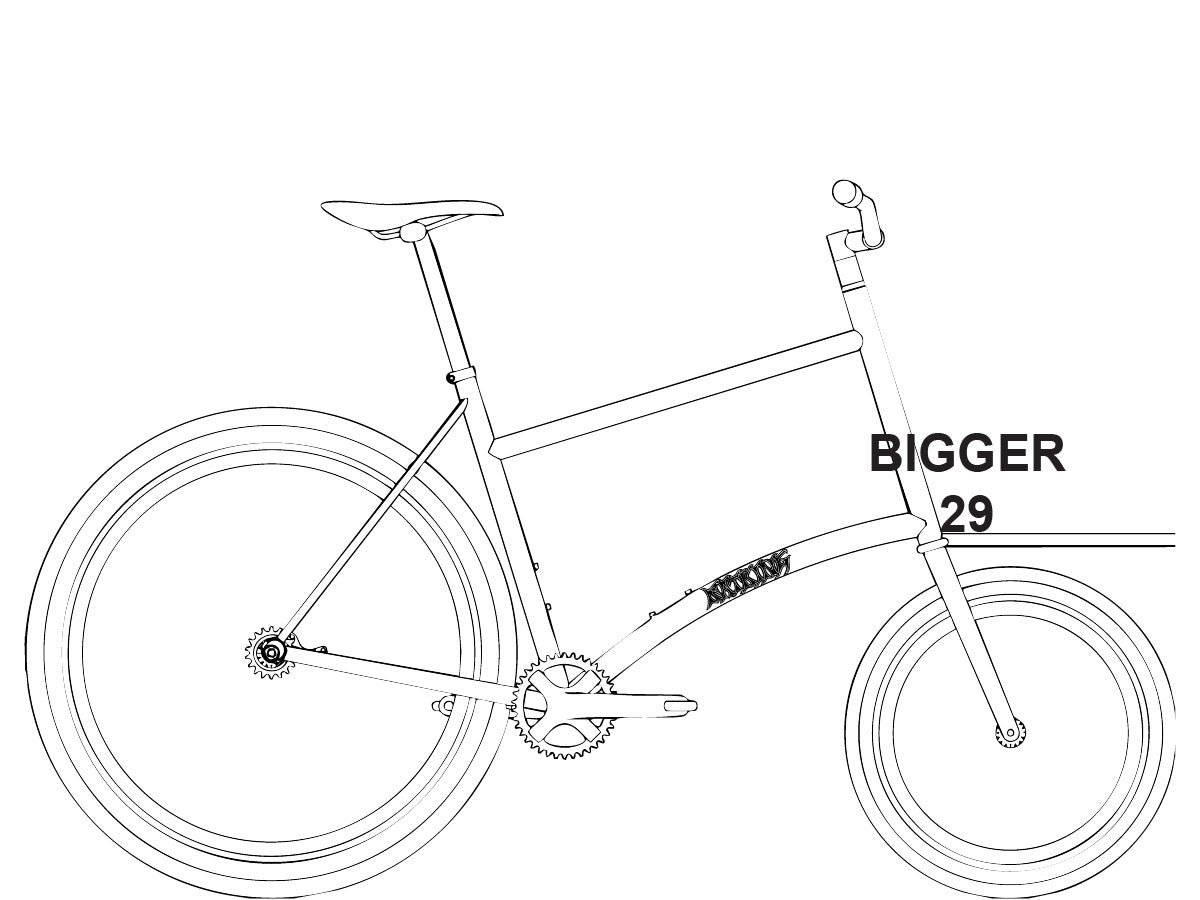

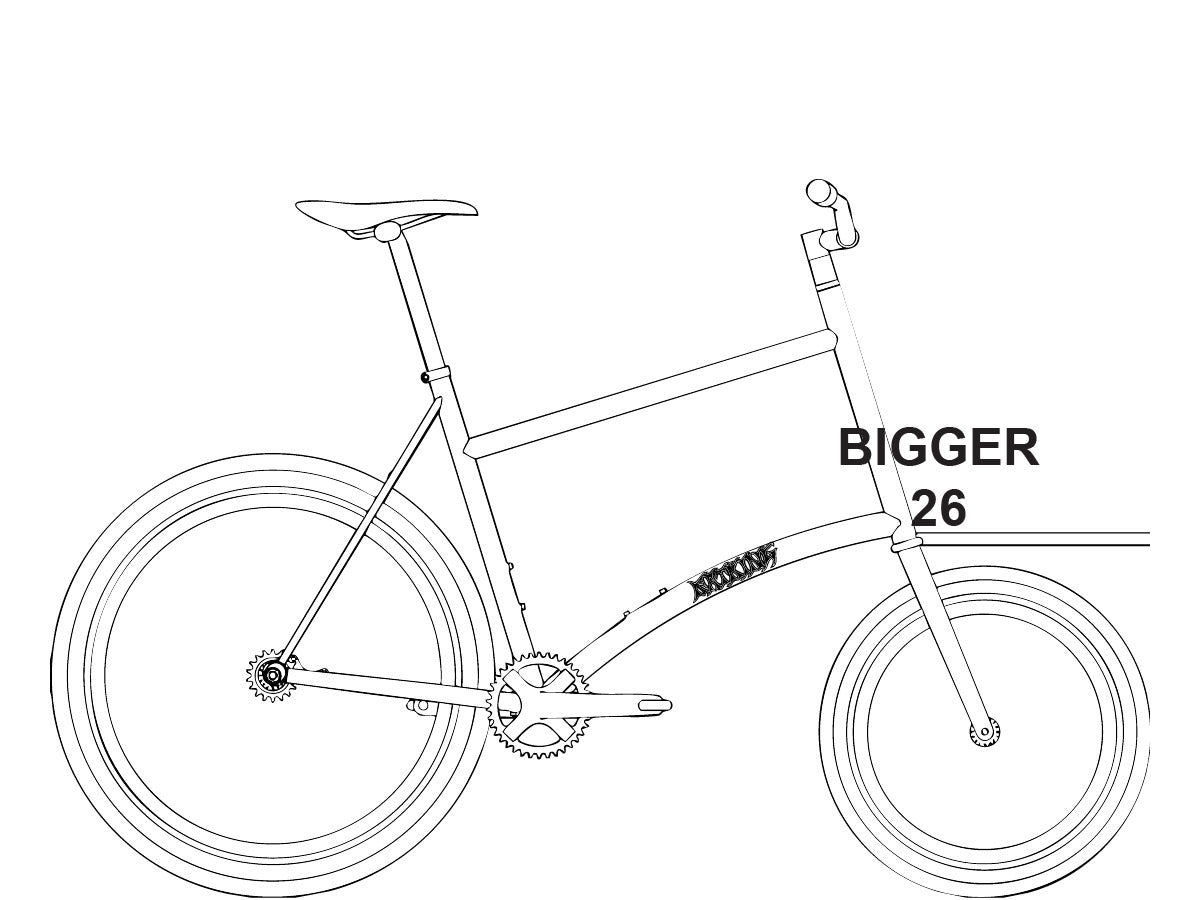

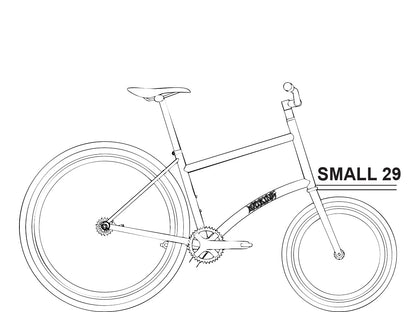

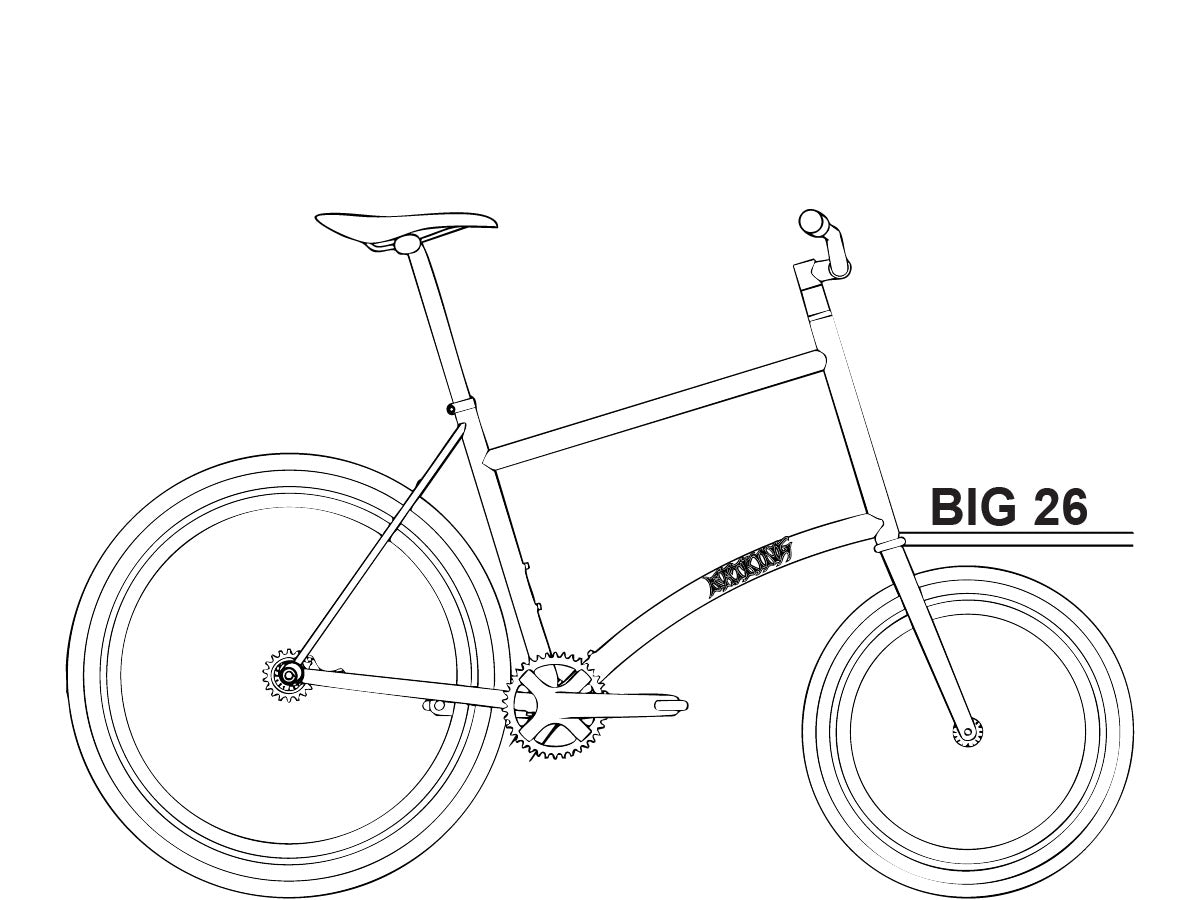

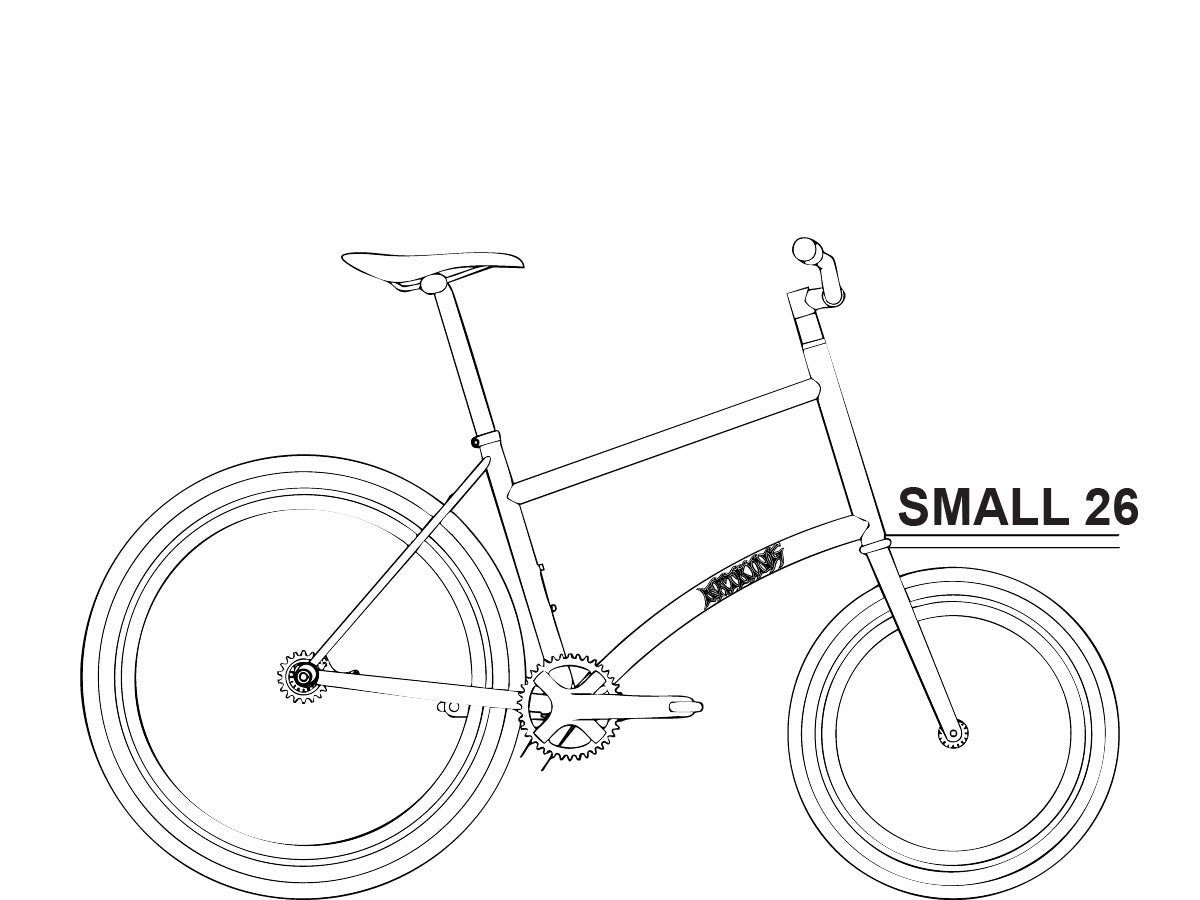

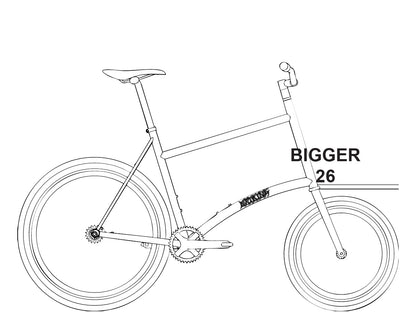

Saddle height in reference diagrams: Small - 720mm / Big - 780mm / Bigger - 800mm

Tubing

Tubing is a mix of straight gauge 4130 and Reynolds 631 chromoly steel tubing.

Included

Frame

Fork

Removable cargo platform

Double leg Kickstand

Build Kit Specs

COCKPIT

Handlebars: RatKing Orodruin

Stem: Profile Racing Mark Mulville

Seatpost: Crust Simple

WHEELS

Hand built Velo Orange Orbital laced to Bitex BX106 Hubs

Tubeless Ready

DRIVETRAIN & BRAKES

Crankset: Paul

Chainring: Wolftooth

Brakes & Levers: Shimano Deore M6200

Shifter: Shimano Deore M6200

Rear Derailleur: Shimano Deore M6200

Cassette: Shimano Deore M6200

Chain: Shimano Deore M6100

Rotors: Shimano SM-RT66SP

Bottom Bracket: Shimano BB-UN300

FINISHING KIT

Tires: Panaracer GravelKing X1

Saddle: Brooks Cambium C17

Grips: ESI Extra Chunky

Finishing

Custom color included. Choose any single stage powdercoat with black or white logos under the clearcoat. Platform can be color matched, Rainbow Chrome, or Black at included price. Two tone/fade, Multi stage powder will be quoted separately.

Timelines

Delivery for frames in or before Spring 2027

Delivery for full build Full Montys in spring 2027

Please note these are made with my two hands. Production and delivery timelines are estimates and may change based on material availability, supplier delays, manufacturing setbacks, or other unforeseen circumstances. If anything changes, I'll holler.

Nitty Gritty

Details for Paint, chainring size, rotor size, etc will be handled one on one. Ill shoot you an email once the pre order window closes with a details page to outline the small decisions to get your build across the finish line.

Minor structural details, including platform reinforcements and frame connections, may be refined during production when there are opportunities to improve strength, durability, or ease of fabrication. Any adjustments will be made with the intention of improving the finished product without changing the frame and platform dimensions, function, or intended use.

Should any unforeseen changes become necessary that meaningfully affect the bike's geometry, compatibility, or intended function, I'll keep you informed and give you the option to have your deposit refunded.

Payment

Your deposit secures your spot in the production queue for this batch and covers the cost of materials. Deposits are nonrefundable.

The remaining balance will be collected in two payments: the first upon completion of fabrication (Finishing), and the second when your bike is ready for pickup or shipping (Checkout).

Shipping will be invoiced separately at actual cost.

Frameset:

Total: $3200.00

Deposit: $1300.00 - Due now

Finishing: $500.00 - Due once fabrication is completed

Remainder due: $1400.00 - Due when the bike is ready for you /before pickup/shipping

Full Monty / Full Build:

Total: $5800.00

Deposit: $3200.00 - Due now

Finishing: $500.00 - Due once fabrication is completed

Remainder due: $2100.00 - Due when the bike is ready for you /before pickup/shipping

Orders not paid in full within 90 days of the final invoice, without prior arrangements, may be canceled and the frame or bike made available for resale, subject to applicable law.

If you find yourself in a bind, just be in touch and Ill be happy to work with you on a payment structure.
